Oscal Pilot 3 Specifications

Oscal Pilot 3 poster
User Manual

A brief overview of the Oscal Pilot 3 phone specifications. This device is using Mediatek Dimensity 6300 (6 nm) processor with 256GB 12GB RAM, UFS 2.2 capacity.

The screen dimension is 6.78 inches, 109.2 cm2 (~69.7% screen-to-body ratio) and it's running the Android 15, DokeOS 4.1.

It also comes with a 50 MP, f/1.8, (wide), 1/2.76", PDAF 20 MP, f/2.0, (night vision), 1/2.8", 2 infrared night vision lights 2 MP, (depth) camera and has a Li-Ion 7500 mAh battery capacity.

$ 230.99

Specifications Overview

Released Date
Exp. release 2025, June 16
Display Dimension
6.78" 1080x2460 pixels
Device Body
357g, 14.5mm thickness
Operating System
Android 15, DokeOS 4.1
RAM Size
12 GB RAM
Processor (CPU)
Dimensity 6300
Battery Capacity
7500 mAh
Device Camera
50MP • 1440p
Storage
256GB storage, microSDXC

Network

Network specifications for Oscal Pilot 3 device

Technology

GSM / CDMA / HSPA / LTE / 5G

2G bands

GSM 850 / 900 / 1800 / 1900, CDMA 800 / 1900

3G bands

HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100

4G bands

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 66

5G bands

1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 77, 78, 79

Speed

HSPA, LTE, 5G

Launch

Oscal Pilot 3 launch date

Announced

2025, June

Status

Coming soon. Exp. release 2025, June 16

Body

Body specifications for Oscal Pilot 3 device

Dimensions

182.2 x 86 x 14.5 mm (7.17 x 3.39 x 0.57 in)

Weight

357 g (12.59 oz)

SIM

Nano-SIM + Nano-SIM, IP68/IP69K dust tight and water resistant (high pressure water jets; immersible up to 1.5m for 30 min) Drop resistant up to 2m MIL-STD-810H compliant

Display

Display specifications for Oscal Pilot 3 device

Type

IPS LCD, 120Hz, 750 nits

Size

6.78 inches, 109.2 cm2 (~69.7% screen-to-body ratio)

Resolution

1080 x 2460 pixels (~396 ppi density)

Protection

Corning Gorilla Glass 5

Platform

Platform specifications for Oscal Pilot 3 device

OS

Android 15, DokeOS 4.1

Chipset

Mediatek Dimensity 6300 (6 nm)

CPU

Octa-core (2x2.4 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)

GPU

Mali-G57 MC2

Memory

Memory specifications for Oscal Pilot 3 device

Card slot

microSDXC (uses shared SIM slot)

Internal

256GB 12GB RAM, UFS 2.2

Main Camera

Main Camera specifications for Oscal Pilot 3 device

Triple

50 MP, f/1.8, (wide), 1/2.76", PDAF 20 MP, f/2.0, (night vision), 1/2.8", 2 infrared night vision lights 2 MP, (depth)

Features

LED flash, HDR, panorama

Video

1440p@30fps, 1080p@30fps

Selfie camera

Selfie camera specifications for Oscal Pilot 3 device

Single

32 MP, f/2.2, (wide), 1/3.1"

Features

HDR

Video

1080p@30fps

Sound

Sound specifications for Oscal Pilot 3 device

Loudspeaker

Yes

3.5mm jack

Yes

Comms

Comms specifications for Oscal Pilot 3 device

WLAN

Wi-Fi 802.11 a/b/g/n/ac, dual-band

Bluetooth

5.2, A2DP, LE

Positioning

GPS, GALILEO, GLONASS, BDS, QZSS

NFC

Yes

Radio

FM radio

USB

USB Type-C, OTG

Features

Features specifications for Oscal Pilot 3 device

Sensors

Fingerprint (side-mounted), accelerometer, gyro, proximity, compass

Battery

Battery specifications for Oscal Pilot 3 device

Type

Li-Ion 7500 mAh

Charging

33W wired 6W reverse wired

Misc

Misc specifications for Oscal Pilot 3 device

Colors

Black, Orange

Price

$ 230.99

Disclaimer: DeviceBeast can not guarantee that the information on this page is 100% correct

Oscal Pilot 3 specs Oscal Pilot 3 ram Oscal Pilot 3 price Oscal Pilot 3 screen size Oscal Pilot 3 battery mah Oscal Pilot 3 specifications Oscal Pilot 3 review Oscal Pilot 3 release date Oscal Pilot 3 launch date

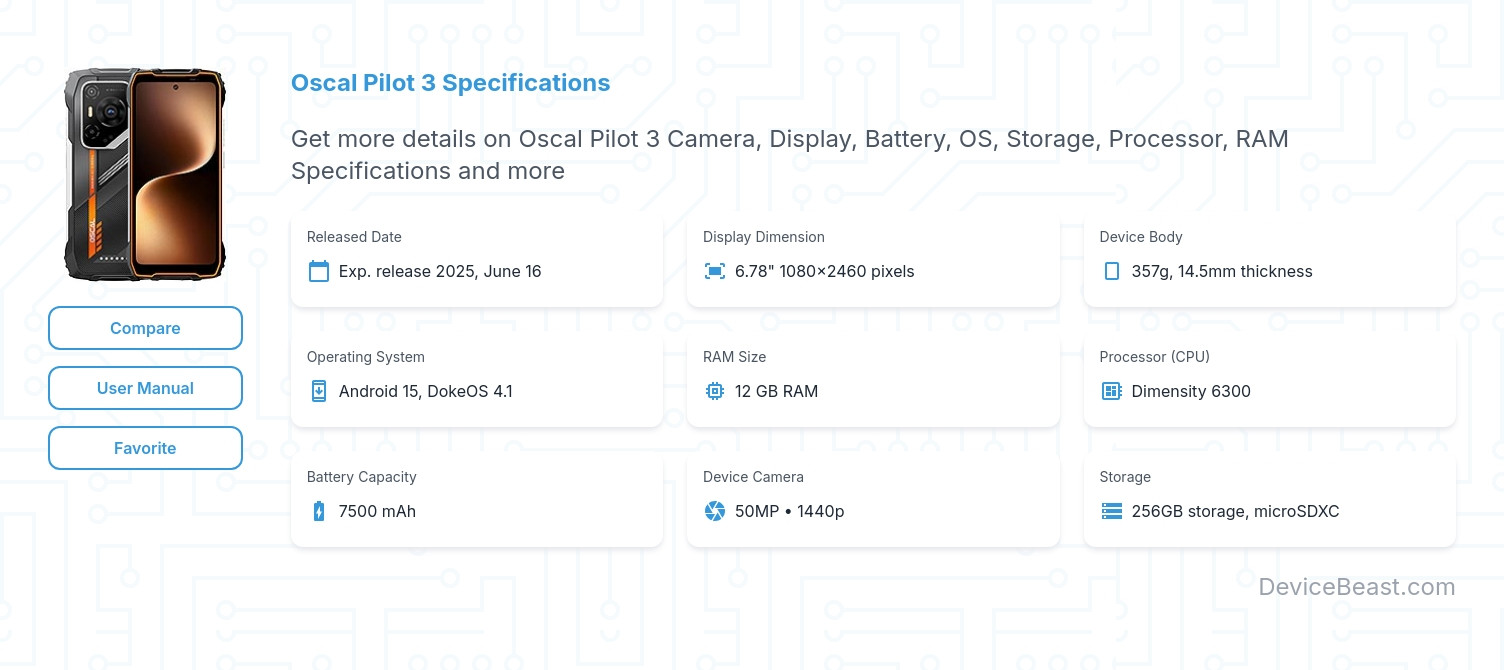

Oscal Pilot 3 specifications overview cover
