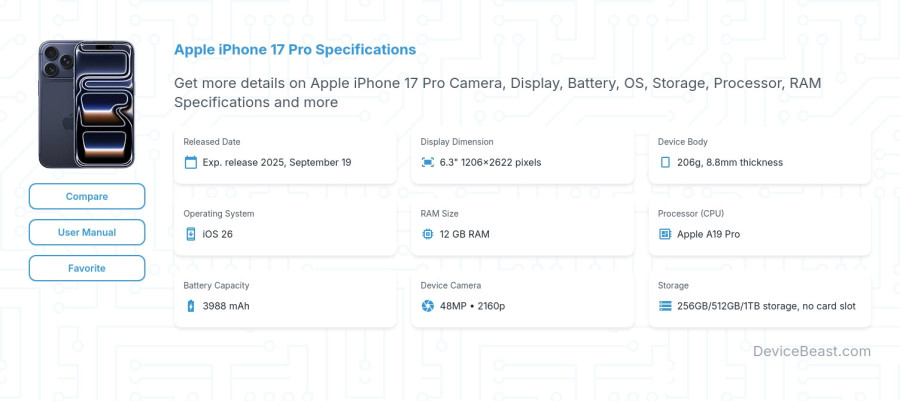

Apple iPhone 17 Pro Specifications

Technology

GSM / CDMA / HSPA / EVDO / LTE / 5G

2G bands

GSM 850 / 900 / 1800 / 1900, CDMA 800 / 1900

3G bands

HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100, CDMA2000 1xEV-DO

4G bands

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66 - A3523, 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71 - A3256, 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71 - A3522, 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 66 - A3524

5G bands

1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 53, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 - A3523, 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A3256, 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79 SA/NSA/Sub6 - A3522, 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 - A3524

Speed

HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps

Announced

2025, September 09

Status

Coming soon. Exp. release 2025, September 19

Dimensions

150 x 71.9 x 8.8 mm (5.91 x 2.83 x 0.35 in)

Weight

206 g (7.27 oz)

Build

Glass front (Ceramic Shield 2), aluminum alloy frame, aluminum alloy back/ glass back (Ceramic Shield)

SIM

Nano-SIM + eSIM + eSIM (max 2 at a time; International)eSIM + eSIM (8 or more, max 2 at a time; USA)Nano-SIM + Nano-SIM (China), IP68 dust tight and water resistant (immersible up to 6m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified)

Type

LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 1600 nits (HBM), 3000 nits (peak)

Size

6.3 inches, 96.4 cm2 (~89.4% screen-to-body ratio)

Resolution

1206 x 2622 pixels, 19.5:9 ratio (~460 ppi density)

Protection

Ceramic Shield 2, Mohs level 5, Anti-reflective coating

OS

iOS 26

Chipset

Apple A19 Pro (3 nm)

CPU

Hexa-core (2x4.26 GHz + 4xX.X GHz)

GPU

Apple GPU (6-core graphics)

Card slot

No

Internal

256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM, NVMe

Triple

48 MP, f/1.6, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS 48 MP, f/2.8, 100mm (periscope telephoto), 1/2.55", 0.7µm, PDAF, 3D sensor‑shift OIS, 4x optical zoom 48 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 0.7µm, PDAF TOF 3D LiDAR scanner (depth)

Features

Dual-LED dual-tone flash, HDR (photo/panorama)

Video

4K@24/25/30/60/100/120fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 120fps), ProRes, ProRes RAW (up to 120fps), Apple Log 2, 3D (spatial) video/audio, stereo

Single

18 MP multi-aspect, f/1.9, (wide), PDAF, OIS SL 3D, (depth/biometrics sensor)

Features

HDR, Dolby Vision HDR, 3D (spatial) audio, stereo sound rec., ProRes RAW, Apple Log 2

Video

4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

Loudspeaker

Yes, with stereo speakers

3.5mm jack

No

WLAN

Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, hotspot

Bluetooth

6.0, A2DP, LE

Positioning

GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC

NFC

Yes

Radio

No

USB

USB Type-C 3.2 Gen 2, DisplayPort

Sensors

Face ID, accelerometer, gyro, proximity, compass, barometer, Ultra Wideband (UWB) support (gen2 chip) Emergency SOS, Messages and Find My via satellite

Type

Li-Ion 3988 mAh - Nano SIM modelLi-Ion 4252 mAh - eSIM only model

Charging

Wired, PD3.2, AVS, 50% in 20 min 25W wireless MagSafe/Qi2, 50% in 30 min (15W - China) 4.5W reverse wired

Colors

Silver, Cosmic Orange, Deep Blue

Models

iPhone18,1, A3256, A3523, A3522, A3524

Price

€ 1,299.00 / £ 1,099.00

Energy

Class A

Battery

47:00h endurance, 1000 cycles

Free fall

Class B (180 falls)

Repairability

Class C
