OnePlus Ace 5 Ultra Specifications
A brief overview of the OnePlus Ace 5 Ultra phone specifications. This device is using Mediatek Dimensity 9400+ (3 nm) processor with 256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM, UFS 4.0 capacity.
The screen dimension is 6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio) and it's running the Android 15, ColorOS 15.
It also comes with a 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm camera and has a Si/C Li-Ion 6700 mAh battery capacity.
About 310 EUR

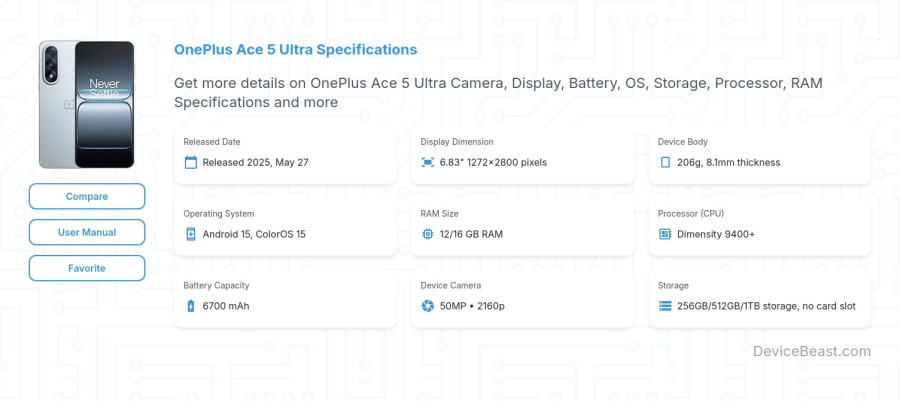

Specifications Overview
- Released Date
- Released 2025, May 27
- Display Dimension
- 6.83" 1272x2800 pixels
- Device Body
- 206g, 8.1mm thickness
- Operating System
- Android 15, ColorOS 15
- RAM Size
- 12/16 GB RAM
- Processor (CPU)
- Dimensity 9400+
- Battery Capacity
- 6700 mAh
- Device Camera
- 50MP • 2160p
- Storage
- 256GB/512GB/1TB storage, no card slot
Network
Network specifications for OnePlus Ace 5 Ultra device
Technology
GSM / HSPA / LTE / 5G
2G bands
GSM 850 / 900 / 1800 / 1900
3G bands
HSDPA 850 / 900 / 1700(AWS) / 2100
4G bands
1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66
5G bands
1, 3, 5, 8, 26, 28, 38, 40, 41, 48, 66, 77, 78 SA/NSA
Speed
HSPA, LTE, 5G
Launch
OnePlus Ace 5 Ultra launch date
Announced
2025, May 27
Status
Available. Released 2025, May 27
Body
Body specifications for OnePlus Ace 5 Ultra device
Dimensions
163.4 x 77 x 8.1 mm (6.43 x 3.03 x 0.32 in)
Weight
206 g (7.27 oz)
SIM
Nano-SIM + Nano-SIM, IP65 dust tight and water resistant (low pressure water jets)
Display
Display specifications for OnePlus Ace 5 Ultra device
Type
AMOLED, 1B colors, 144Hz, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1400 nits (peak)
Size
6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio)
Resolution
1272 x 2800 pixels (~450 ppi density)
Protection
Crystal Shield Glass
Platform
Platform specifications for OnePlus Ace 5 Ultra device
OS
Android 15, ColorOS 15
Chipset
Mediatek Dimensity 9400+ (3 nm)
CPU
Octa-core (1x3.73 GHz Cortex-X925 & 3x3.3 GHz Cortex-X4 & 4x2.4 GHz Cortex-A720)
GPU
Immortalis-G925 MC12
Memory
Memory specifications for OnePlus Ace 5 Ultra device
Card slot
No
Internal
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM, UFS 4.0
Main Camera
Main Camera specifications for OnePlus Ace 5 Ultra device
Dual
50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm
Features
LED flash, HDR, panorama
Video
4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS
Selfie camera
Selfie camera specifications for OnePlus Ace 5 Ultra device
Single
16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm
Features
HDR, panorama
Video
1080p@30fps, gyro-EIS
Sound
Sound specifications for OnePlus Ace 5 Ultra device
Loudspeaker
Yes, with stereo speakers
3.5mm jack
No
Comms
Comms specifications for OnePlus Ace 5 Ultra device
WLAN
Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band
Bluetooth
5.4, A2DP, LE, aptX HD, LHDC 5, BLE Audio
Positioning
GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a+B2b), GALILEO (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5)
NFC
Yes, HCE, eSE, NFC-SIM
Infrared port
Yes
Radio
No
USB
USB Type-C 2.0
Features
Features specifications for OnePlus Ace 5 Ultra device
Sensors
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Battery
Battery specifications for OnePlus Ace 5 Ultra device
Type
Si/C Li-Ion 6700 mAh
Charging
100W wired, PD, 100% in 39 min 7.5W reverse wired Bypass charging
Misc
Misc specifications for OnePlus Ace 5 Ultra device
Colors
Blue, Black, Titanium
Models
PLC110
Price
About 310 EUR
Disclaimer: DeviceBeast can not guarantee that the information on this page is 100% correct
