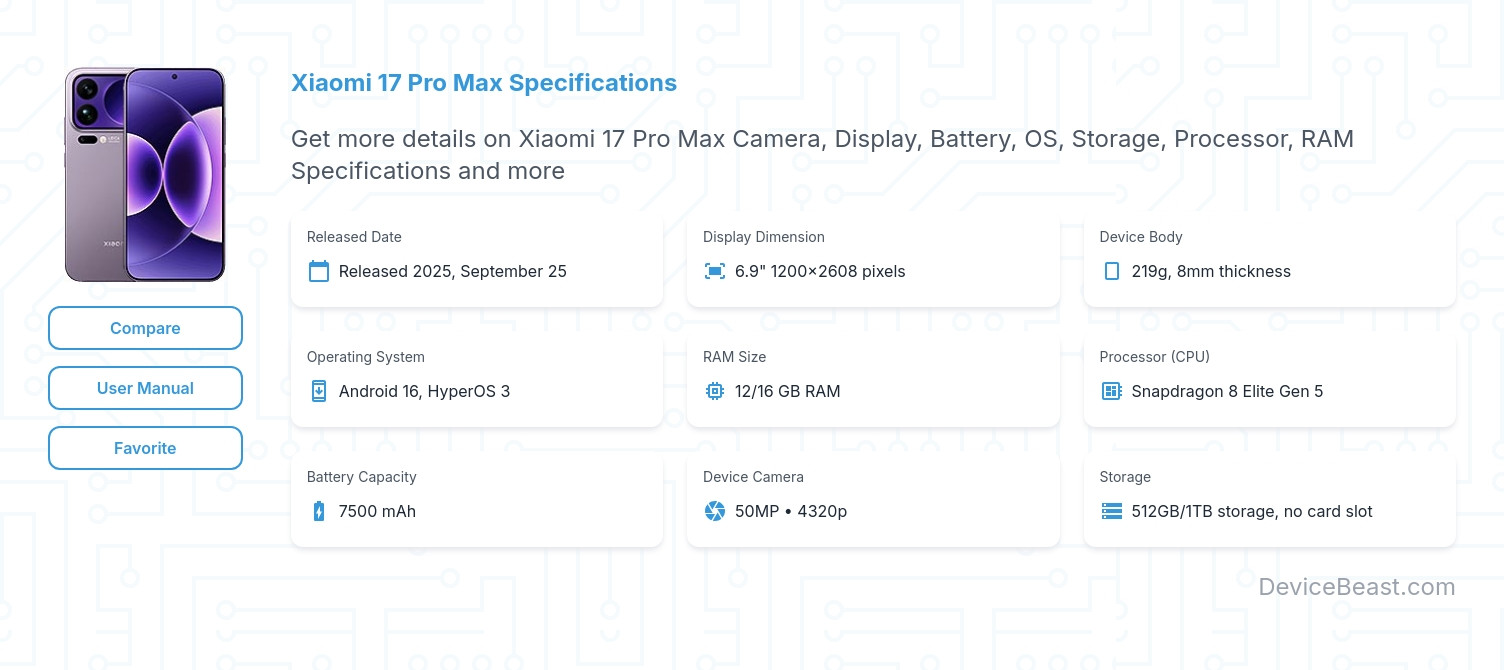

Xiaomi 17 Pro Max Specifications
A brief overview of the Xiaomi 17 Pro Max phone specifications. This device is using Qualcomm SM8850-AC Snapdragon 8 Elite Gen 5 (3 nm) processor with 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM, UFS 4.1 capacity.
The screen dimension is 6.9 inches, 116.6 cm2 (~92.3% screen-to-body ratio) and it's running the Android 16, HyperOS 3.
It also comes with a 50 MP, f/1.7, 23mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, OIS 50 MP, f/2.6, 115mm (periscope telephoto), 1/2.0", PDAF (30cm - ∞), OIS, 5x optical zoom 50 MP, f/2.4, 17mm, 102˚ (ultrawide), 1/2.76", 0.64µm camera and has a Si/C Li-Ion 7500 mAh battery capacity.
About 720 EUR
Specifications Overview
- Released Date
- Released 2025, September 25
- Display Dimension
- 6.9" 1200x2608 pixels
- Device Body
- 219g, 8mm thickness
- Operating System
- Android 16, HyperOS 3
- RAM Size
- 12/16 GB RAM
- Processor (CPU)
- Snapdragon 8 Elite Gen 5
- Battery Capacity
- 7500 mAh
- Device Camera
- 50MP • 4320p
- Storage
- 512GB/1TB storage, no card slot
Network
Network specifications for Xiaomi 17 Pro Max device
Technology
GSM / HSPA / LTE / 5G
2G bands
GSM 850 / 900 / 1800 / 1900
3G bands
HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66, 71
5G bands
1, 2, 3, 5, 7, 8, 12, 13, 18, 20, 25, 26, 28, 38, 40, 41, 48, 66, 70, 71, 77, 78, 79, 80, 81, 83, 84, 89 SA/NSA
Speed
HSPA, LTE, 5G
Launch
Xiaomi 17 Pro Max launch date
Announced
2025, September 25
Status
Available. Released 2025, September 25
Body
Body specifications for Xiaomi 17 Pro Max device
Dimensions
162.9 x 77.6 x 8 mm (6.41 x 3.06 x 0.31 in)
Weight
219 g (7.72 oz)
Build
Glass front (Dragon Crystal Glass 3), aluminum frame
SIM
Nano-SIM + Nano-SIM, IP68 dust tight and water resistant (immersible up to 6m for 30 min)
Display
Display specifications for Xiaomi 17 Pro Max device
Type
LTPO AMOLED, 68B colors, 2160Hz PWM, 120Hz, Dolby Vision, HDR Vivid, HDR10+, 3500 nits (peak)
Size
6.9 inches, 116.6 cm2 (~92.3% screen-to-body ratio)
Resolution
1200 x 2608 pixels, 19.5:9 ratio (~416 ppi density)
Protection
Xiaomi Dragon Crystal Glass 3, Secondary display (on the back): LTPO AMOLED, 120Hz, Dolby Vision, HDR Vivid, HDR10+, 3500 nits (peak) 2.9 inches, 596 x 976 pixels
Platform
Platform specifications for Xiaomi 17 Pro Max device
OS
Android 16, HyperOS 3
Chipset
Qualcomm SM8850-AC Snapdragon 8 Elite Gen 5 (3 nm)
CPU
Octa-core (2x4.6 GHz Oryon V3 Phoenix L + 6x3.62 GHz Oryon V3 Phoenix M)
GPU
Adreno 840
Memory
Memory specifications for Xiaomi 17 Pro Max device
Card slot
No
Internal
512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM, UFS 4.1
Main Camera
Main Camera specifications for Xiaomi 17 Pro Max device
Triple
50 MP, f/1.7, 23mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, OIS 50 MP, f/2.6, 115mm (periscope telephoto), 1/2.0", PDAF (30cm - ∞), OIS, 5x optical zoom 50 MP, f/2.4, 17mm, 102˚ (ultrawide), 1/2.76", 0.64µm
Features
Laser AF, color spectrum sensor, Leica lens, Dual-LED dual-tone flash, HDR, panorama
Video
8K@30fps (HDR), 4K@30/60/120fps (HDR10+, 10-bit Dolby Vision HDR, 10-bit LOG), 1080p@30/60/120/240/960fps, 720p@1920fps, gyro-EIS
Selfie camera
Selfie camera specifications for Xiaomi 17 Pro Max device
Single
50 MP, f/2.2, 21mm (wide), PDAF
Features
HDR, panorama
Video
4K@30/60fps, 1080p@30/60fps, HDR10+, gyro-EIS
Sound
Sound specifications for Xiaomi 17 Pro Max device
Loudspeaker
Yes, with stereo speakers (with Dolby Atmos)
3.5mm jack
No, 24-bit/192kHz Hi-Res & Hi-Res wireless audio Snapdragon sound
Comms
Comms specifications for Xiaomi 17 Pro Max device
WLAN
Wi-Fi 802.11 a/b/g/n/ac/6e/7, dual-band, Wi-Fi Direct
Bluetooth
5.4, A2DP, LE, aptX HD, aptX Adaptive, LHDC 5
Positioning
GPS (L1+L5), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5), NavIC (L5), GLONASS
NFC
Yes
Infrared port
Yes
Radio
No
USB
USB Type-C 3.2, Display Port, OTG
Features
Features specifications for Xiaomi 17 Pro Max device
Sensors
Fingerprint (under display, ultrasonic), accelerometer, proximity, gyro, compass, barometer, Ultra Wideband (UWB) support
Battery
Battery specifications for Xiaomi 17 Pro Max device
Type
Si/C Li-Ion 7500 mAh
Charging
100W wired, PD3.0, QC3+, 100W PPS 50W wireless 22.5W reverse wireless
Misc
Misc specifications for Xiaomi 17 Pro Max device
Colors
Black, White, Purple, Green
Price
About 720 EUR
Disclaimer: DeviceBeast can not guarantee that the information on this page is 100% correct
